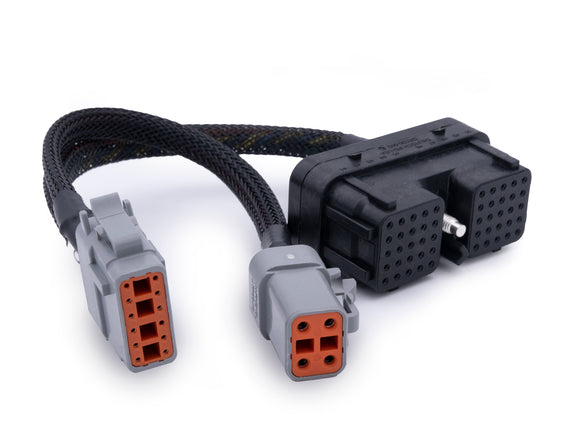

Diesel Laptops Bypass Breakout Cable for Cummins CM87x

Diesel Laptops Bypass Breakout Cable for Cummins CM87x

This is a bypass breakout cable used to connect to Cummins CM87x engines.

Features:

• All cables are tested on live ECMs and validated before shipping.
• Professional, quality manufactured cable made in the USA.
• 12 month warranty.

This cable is used on Cummins ECMs that are CM850, CM875, CM870, CM871 or CM876. This bypass harness is used to connect directly to the ECM instead of going through the vehicle dash connector.

The Cummins ECMs in the CM87x series will typically be found in the 2003-2008 model years. This includes the ISX, Signature Series, ISB, ISC, ISL, and more. If you aren't sure, please contact us so we can look it up for you.

Note: This cable also requires our Main Bypass Programming Cable to connect to the ECM. Our unique design allows you to purchase this main cable first, then purchase the "ends" that you need to connect to various ECMs.

Why would you need an ECM breakout harness?

• Most OEMs recommend NOT programming the vehicle through the dash connector, but instead go directly to the ECM. These are the perfect programming cables for such a project.
• You are having issues with the diagnostic port on your commercial truck, and wish to bypass the vehicle wiring and go directly to the ECM.
• You have an ECM that is not installed on the truck and wish to do programming or modifications on the workbench.

ECM Programming

If you would like more information about ECM programming, check out this video or click below for a great blog post that goes in-depth on the subject, including what software is necessary.

Learn More

Bypass Master Cable Kit

This main cable is included in our Bypass Breakout Master Cable Kit along with the necessary cables to connect to Cummins, Detroit, and CAT engines.

View Kit
